Features

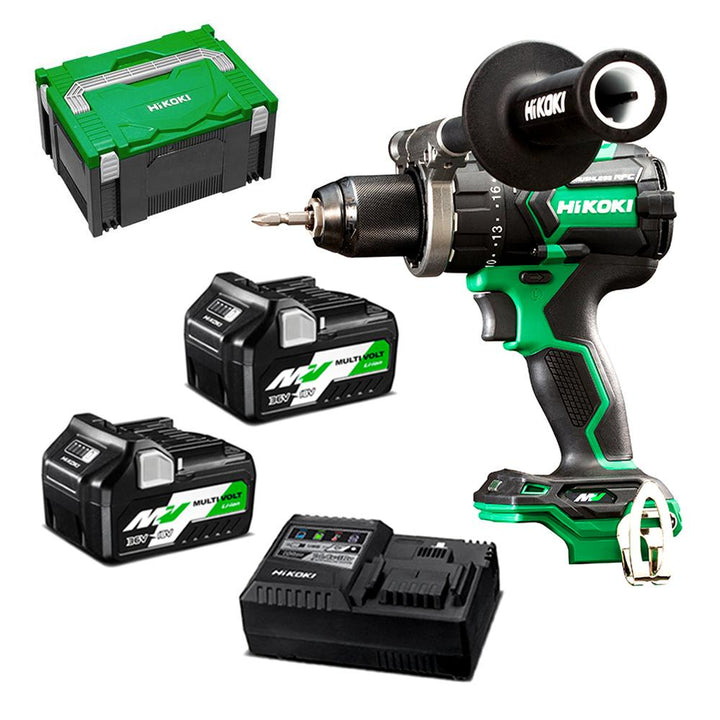

Standard accessories: battery DS36DC-BSL36A18*2, charger, side handle, hook, screwdriver bit, battery cover
- Maximum torque 155 Nm
- Torque adjustment reaches 22 levels
- Brushless DC motor
| Model specifications |
MV battery (BSL36A18) |
fast charger (UC18YSL3) |
hook | Side handle | |
|---|---|---|---|---|---|
| DS36DC | (2XCP) | 2 pcs | ● | ● | ● |

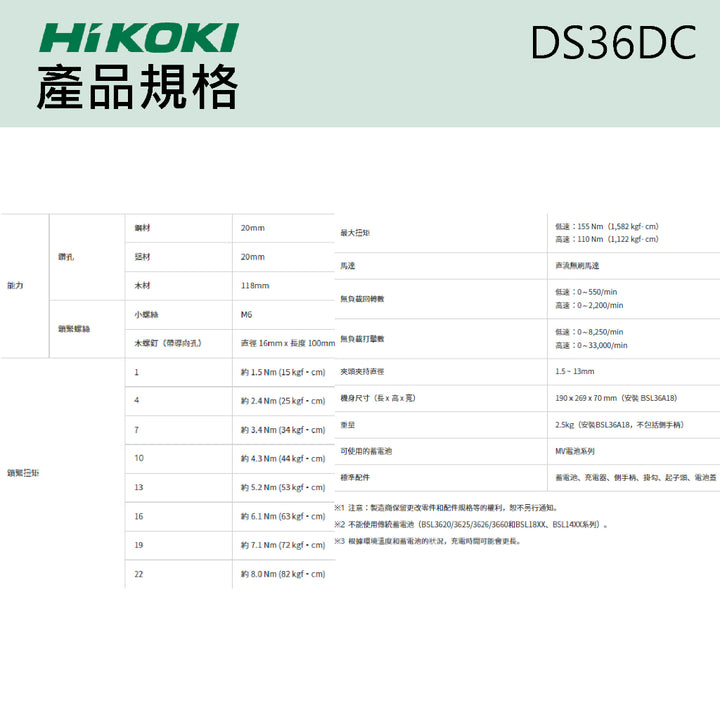

Specifications (Specifications)
| ability | drilling | Steel | 20mm |
|---|---|---|---|
| Aluminum | 20mm | ||
| wood | 118mm | ||
| locking screw | small screws | M6 | |
| Wood screws (with pilot holes) | Diameter 16mm x length 100mm | ||
| Locking torque | 1 | Approx. 1.5 Nm (15 kgf・cm) | |
| 4 | Approx. 2.4 Nm (25 kgf・cm) | ||
| 7 | Approx. 3.4 Nm (34 kgf・cm) | ||
| 10 | Approx. 4.3 Nm (44 kgf・cm) | ||
| 13 | Approx. 5.2 Nm (53 kgf・cm) | ||
| 16 | Approx. 6.1 Nm (63 kgf・cm) | ||
| 19 | Approx. 7.1 Nm (72 kgf・cm) | ||
| twenty two | Approx. 8.0 Nm (82 kgf・cm) | ||
| Maximum torque | Low speed: 155 Nm (1,582 kgf·cm) High speed: 110 Nm (1,122 kgf·cm) |
||
| motor | Brushless DC motor | ||
| Number of revolutions without load | Low speed: 0～550/min High speed: 0～2,200/min |
||
| Number of hits without load | Low speed: 0～8,250/min High speed: 0～33,000/min |
||
| Chuck clamping diameter | 1.5~13mm | ||
| Body size (length x height x width) | 190 x 269 x 70 mm (with BSL36A18 installed) | ||
| weight | 2.5kg (BSL36A18 installed, side handle not included) | ||
| Available batteries | MV battery series | ||
| Standard accessories | Battery, charger, side handle, hook, screwdriver bit, battery cover | ||
- Note: The manufacturer reserves the right to change parts and accessories specifications, etc. without prior notice.
- Traditional batteries (BSL3620/3625/3626/3660 and BSL18XX, BSL14XX series) cannot be used.
- Charging time may be longer depending on ambient temperature and battery condition.
With the industry's No. 1 * high power and strong continuous operation capabilities!
*As of October 2022. Japanese domestic power tool manufacturers (according to HiKOKI research) (cordless vibrating drill)

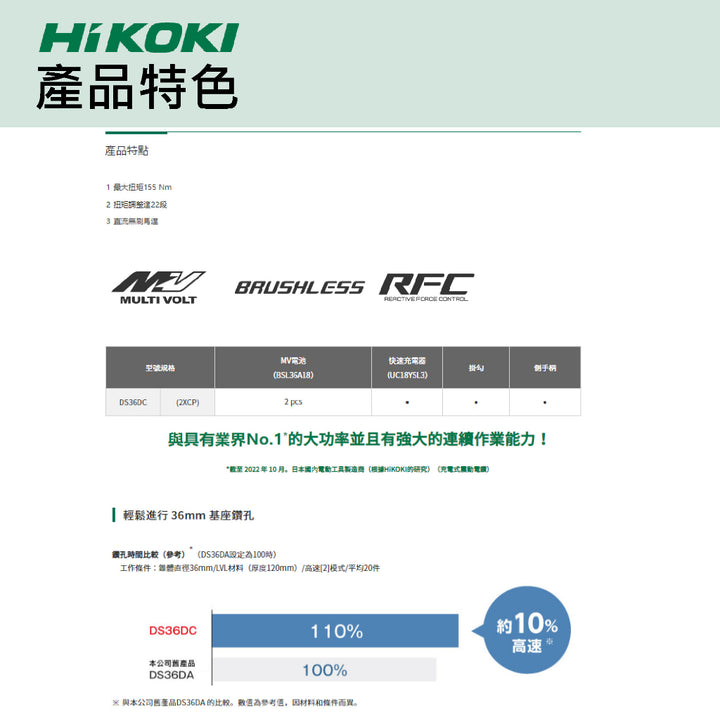

Easily drill 36mm base holes
Drilling time comparison (reference) * (when DS36DA is set to 100)
Working conditions: cone diameter 36mm/LVL material (thickness 120mm)/high speed [2] mode/average 20 pieces
.jpg)
- Comparison with our company's old product DS36DA. Values are reference values and may vary depending on materials and conditions.
Structural screw locking operations for large wooden buildings Fast locking with high power
Optimizing the motor specifications and strengthening the frequency conversion circuit can demonstrate superior speed and continuous operation performance compared with similar products even under heavy-load operation *1 .
Continuous screw locking comparison (reference) *2
Working conditions: Structural screw M10x320mm / LVL material (no guide holes) / low speed [1] mode / rest for 20 seconds after tightening 2 screws, the locking time is the average of 10 screws.
- As of October 2022. Domestic power tool manufacturers in Japan (according to HiKOKI research)
- Comparison with our company's old product DS36DA. Values are reference values and may vary depending on materials and conditions.
-
Compact body
Side handle
-
The 11-section angle-adjustable side handle can be fixed in a position corresponding to the on-site environment. In addition, by shortening the length, it becomes easier to use. (Patent pending for a new structure that expands the bracket when released)
Reaction force control function with gyro sensor
The motor automatically stops when the gyro sensor in the controller detects a predetermined angle. Reduce excessive body swing.
Please noteDepending on circumstances and conditions during work, the RFC may not be operational. To ensure the stability of the tool body, please hold the tool body firmly and do not swing it left or right.
If the user suddenly changes posture while working, the RFC process may be activated. -
